Description
The Container Spreader is a specialized lifting equipment designed to securely handle and transfer shipping containers with efficiency. This spreader, when used with cranes, allows safe and effective loading, unloading, and stacking of containers, whether delivered by sea, rail, or road. It has a strong design, precise control, and a flexible configuration for handling varied container sizes and weights in port operations, logistics, and intermodal transport.
Load Capacity: Available in models ranging from 10 tons to 50 tons or more, based on specific operational requirements.
Beam Width: Adjustable beams allow for handling different container sizes, such as 20’, 40’, and 45’ containers.
Control System: Options for manual operation, semi-automatic, or fully automated control systems for crane operators.
Material Type: Custom designs using corrosion-resistant materials for specialized environments, such as marine or high-humidity conditions.
Additional Features:
Hydraulic or mechanical locking systems for enhanced security.
Lifting eye configurations tailored to specific crane types or lifting needs.
Types and Parameter

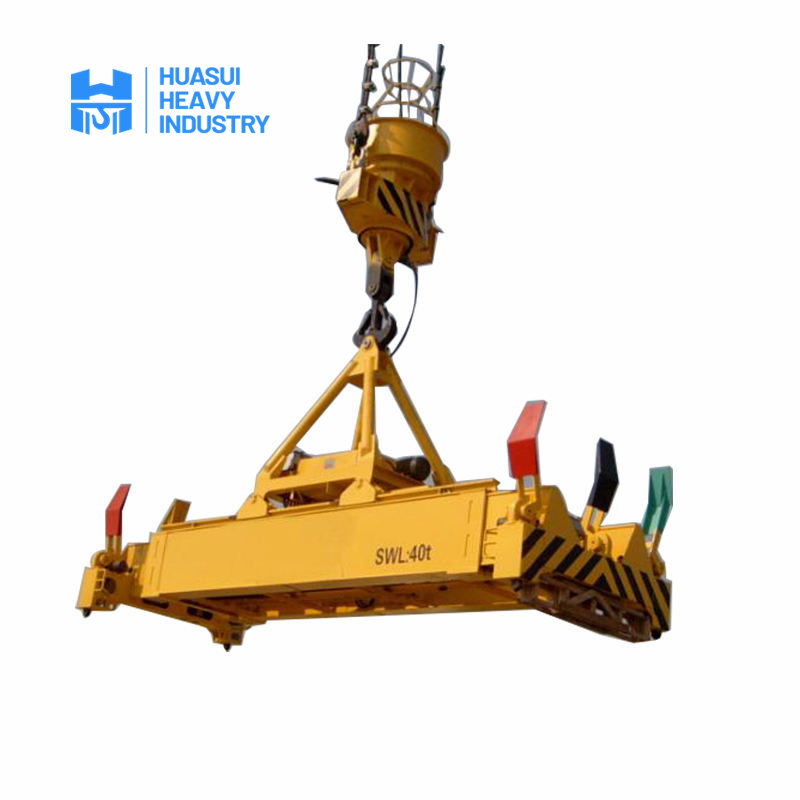

Standard Hydraulic Container Spreader
|
Specification |
Description |
| Model | ST-HCS-40 |
| Type | Hydraulic, Single Lift |
| Max Load Capacity | 40 Tons |
| Container Sizes | 20’, 40’, 45’ ISO Containers |
| Beam Length (Adjustable) | 6m – 12m |
| Lifting Mechanism | Hydraulic Expansion/Retraction |
| Locking Mechanism | Hydraulic Clamps |
| Material | High-Strength Alloy Steel |
| Weight | 4,500 kg |
| Hydraulic Pressure | 200 Bar |
| Control Type | Remote/Manual Control Panel |
| Safety Features | Overload Protection, Safety Locks, Emergency Stop |
| Application | Port Operations, Shipping, Intermodal Transport |
| Features | Easy operation, Adjustable width, Secure locking system |

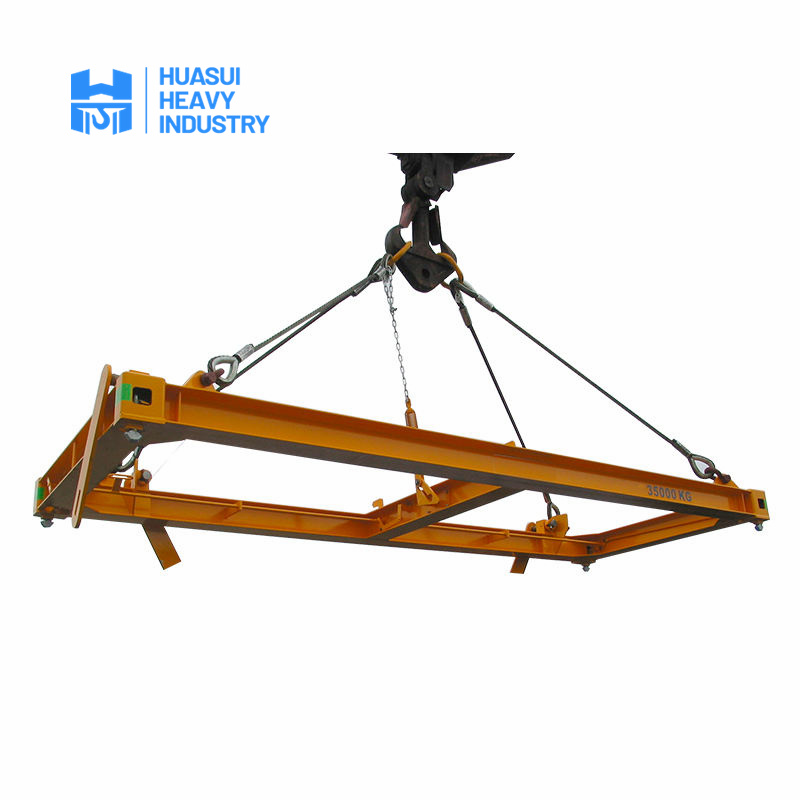

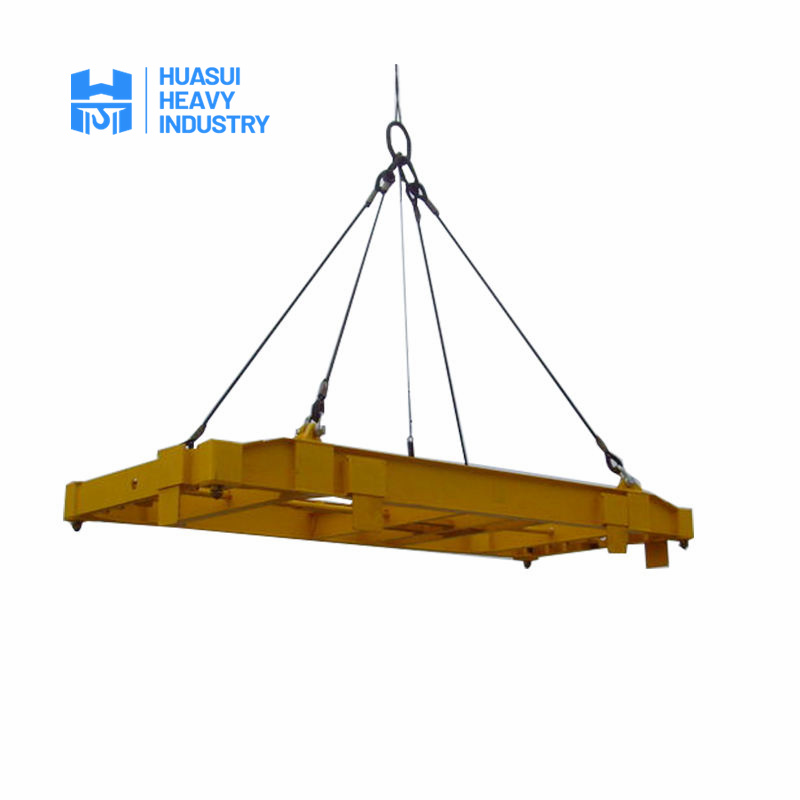

Fixed Spreader for Heavy Duty Cranes
|
Specification |
Description |
| Model | FD-SC-50 |
| Type | Fixed, Heavy Duty |
| Max Load Capacity | 50 Tons |
| Container Sizes | 40’ and 45’ ISO Containers |
| Beam Length | 12m |
| Lifting Mechanism | Fixed Beam, Manual Locking |
| Locking Mechanism | Mechanical, Manual Locks |
| Material | Carbon Steel with Anti-corrosion Coating |
| Weight | 8,000 kg |
| Control Type | Manual |
| Safety Features | Overload Indicator, Locking Mechanisms |
| Application | Large Scale Port Operations, Heavy Lifting |
| Features | No hydraulic system, Simple & durable design, Ideal for heavy containers |
Automatic Spreader with Remote Control
|
Specification |
Description |
| Model | AT-SCR-20 |
| Type | Automatic, Remote Control |
| Max Load Capacity | 20 Tons |
| Container Sizes | 20’, 40’, 45’ ISO Containers |
| Beam Length (Adjustable) | 5m – 10m |
| Lifting Mechanism | Electric Motors (Automatic Extension) |
| Locking Mechanism | Pneumatic Clamps, Auto-lock |
| Material | Stainless Steel, High Strength |
| Weight | 3,200 kg |
| Control Type | Wireless Remote, Automatic Operation |
| Safety Features | Overload Protection, Emergency Release, Automatic Locking |
| Application | Ports, Intermodal Logistics, Rail Loading |
| Features | Automatic container handling, Remote operation, High efficiency |
Spreaders for Oversized Containers (Custom Design)
|
Specification |
Description |
| Model | OS-500-CST |
| Type | Custom, Oversized Container |
| Max Load Capacity | 80 Tons |
| Container Sizes | Custom Sizes (Up to 55’) |
| Beam Length | 18m Adjustable |
| Lifting Mechanism | Hydraulic Cylinder with High Lift Capability |
| Locking Mechanism | Hydraulic Locking with Clamps |
| Material | High-Strength Alloy Steel, Anti-Corrosion |
| Weight | 12,000 kg |
| Control Type | Remote/Automated with Monitoring System |
| Safety Features | Anti-sway Mechanism, Overload Warning, Pressure Relief Valve |
| Application | Heavy Duty Cargo, Specialized Container Handling |
| Features | Customizable design, High load capacity, Hydraulic lifting |
Electric Spreader for Container Handling in Ports
|
Specification |
Description |
| Model | ES-PH-25 |
| Type | Electric, Semi-Automatic |
| Max Load Capacity | 25 Tons |
| Container Sizes | 20’, 40’, 45’ ISO Containers |
| Beam Length (Adjustable) | 6m – 12m |
| Lifting Mechanism | Electric Motor with Gearbox |
| Locking Mechanism | Pneumatic, Auto-lock |
| Material | Steel Frame with Anti-Corrosion Coating |
| Weight | 5,000 kg |
| Control Type | Semi-Automatic, Control Panel |
| Safety Features | Overload Protection, Locking Clamps, Pressure Relief |
| Application | Ports, Intermodal Transport, Logistics |
| Features | Fast operation, Electric-driven, Easy maintenance |
Features
High Load Capacity: Capable of handling containers up to 50 tons or more, depending on the model and application.
Automatic Locking Mechanism: Ensures secure grip on containers, preventing accidental detachment during lifting.
Wide Range of Compatibility: Adjustable design accommodates standard ISO containers (20’, 40’, 45’) and customized container sizes.
Durable Construction: Built with high-strength steel and corrosion-resistant coatings for long-lasting performance in harsh marine and industrial environments.
Easy Operation: Can be operated using manual controls or automated crane systems for seamless lifting and handling.
Details
Spreader Beam:
Constructed from high-strength alloy steel, providing stability and strength.
Designed to handle container loads with balanced weight distribution for smooth operation.
Locking Clamps:
Hydraulic or mechanical clamps that automatically lock onto the container’s corner castings.
Prevent slippage or detachment during lifting, ensuring safety.
Hydraulic System:
Integrated hydraulic components control the extension and retraction of the spreader beam, allowing it to adjust to different container widths.
Hydraulic lock mechanism for easy and secure gripping of the container.
Control Panel:
User-friendly interface for crane operators, with real-time indicators for load weight, lifting status, and system performance.
Remote control options for precise operation, enhancing safety and efficiency.
Advantages
Enhanced Safety: Reduces manual labor, ensuring the safe handling of containers and minimizing workplace accidents.
Increased Efficiency: Streamlines container handling operations, reducing turnaround time in ports and improving throughput.
Cost-Effective: Durable and low-maintenance design, reducing operational downtime and repair costs.
Versatility: Suitable for a wide range of container sizes and types, ensuring compatibility with global shipping standards.
Applications
Port Operations: Handling and moving containers in container terminals and docks.
Shipping: Loading and unloading containers from ships, cargo vessels, and barges.
Rail and Road Transport: Efficiently transferring containers between ships, trucks, and railcars.
Logistics: Facilitating smooth and efficient container transfer within logistics hubs and warehouses.
Intermodal Transport: Optimizing the handling of containers in combined transport systems (e.g., ship-to-rail or rail-to-truck).
|
Specification:JD 01ST40-41FG |
Power supply |
AC 380V 50Hz |
|
| Applicable to ISO 20’、40′ container | control voltage | AC 220 | |
| Rated lifting capacity | 41t | total power | ≤6kW |
| Allowable load eccentricity | Length direction -1.25m Width direction -0.26m |
maximum consumption power | 4kW |
| protection grade | Ip55 | ||
| Load of lifting lug on four corner | 4 * 10.25 t | environmental temperature | -20℃~+40℃ |
| Telescopic type | gear motor chain transmission | twist lock type | ISO float twistlick ,gear motor drive |
| Telescopic(20’~40′) | -22s | twist lock (90°) | <1s |
| Guide plate | Fixed guide plate (detachable) | dead weight | 7.5t |
