Crane C Hook Set

Short Description:

C type hook Lifting clamps for cranes are designed to improve user’s material handling efficiency and ensure their safety. Various types of lifting clamps are available for diverse industrial application requirements, such as steel coil clamps, steel billet clamps, steel ingot clamps, steel plate clamps, block clamps and skidding clamps etc.


  • Brand: Huasui
  • Place of origin: Henan,China
  • Transportation: Ocean shipping
  • Product Detail

    Product Tags

    Product Description

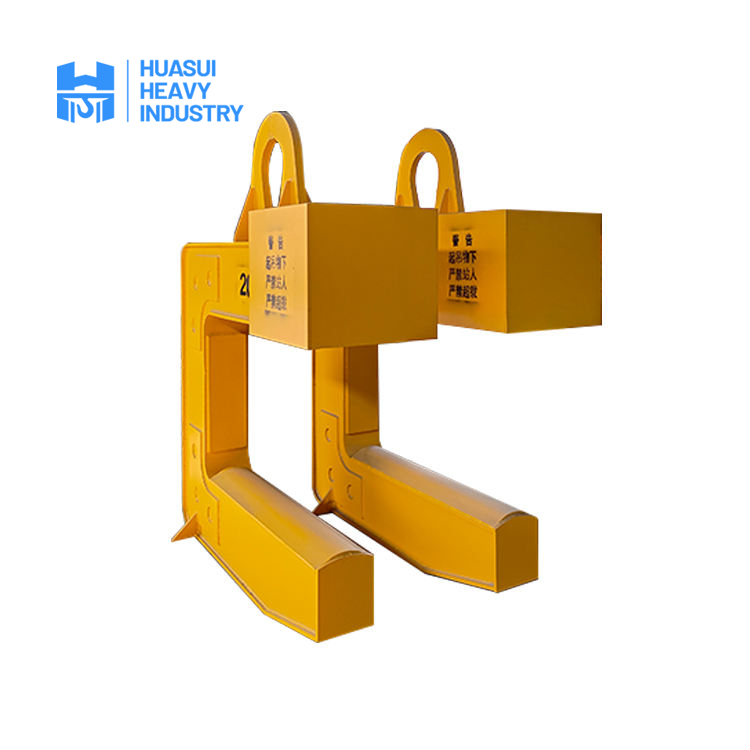

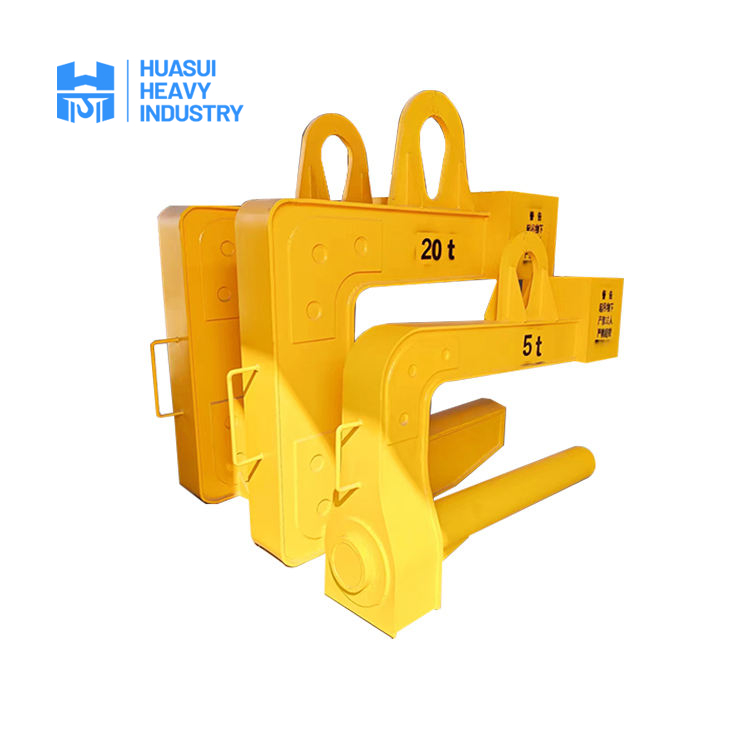

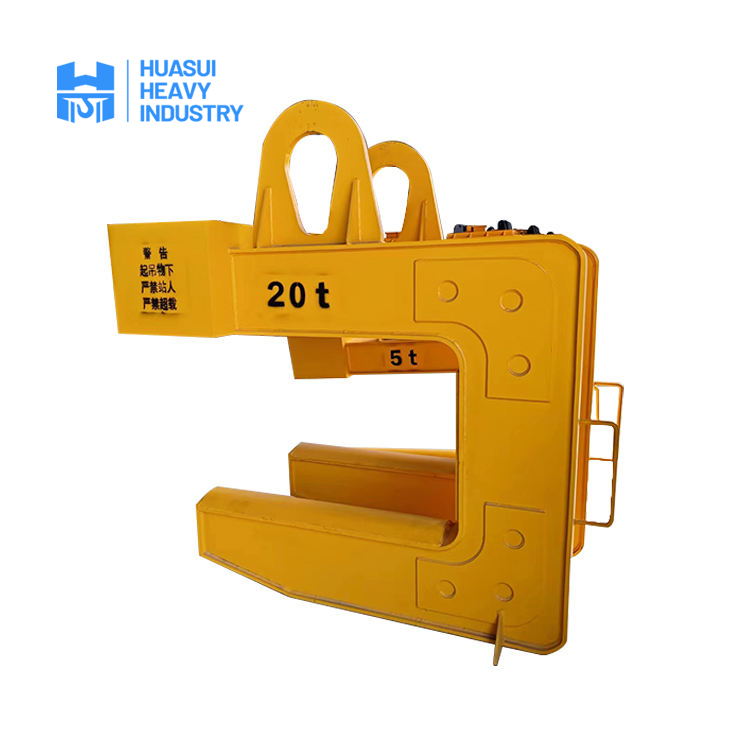

    The C type hook, produced by our factory, which certainly represent the most effective solution to material lifting and handling problems, are made using systems that allow for a significant reduction of the weight and structural dimensions. The gripping is obtained by means of jaws that, operated by an electro-mechanical system, are able to go from the maximum to the minimum opening in a time varying within a short period of time depending on the model. The jaw opening and closing system is managed via a push-button panel built into that of the crane or, upon the customer’s request, via a remote control. Moreover, again on request, all clamps can be equipped with a motorised 360° rotation system. An alternative, structurally simpler but not less effective, for material lifting and handling, is represented by brackets, that is devices with a typical C-shape connected to the crane by means of chains and managed manually directly by the operators using the handles.

    Applications

    Crane C-hooks are essential lifting tools in workplaces that use horizontal steel coils, such as steel mills, cold-rolled sheet production and processing enterprises, and the warehouses and logistics departments of metallurgical industry companies. Crane C-hooks are commonly used for lifting steel coils, aluminum coils, copper coils, and wire reels.

    Crane C-hooks are not only suitable for lifting steel or metal coils. They are also adaptable to other fields, such as:

    • Handling of pipe sections: large metal pipelines
    • Non-metal coils: fiber optic or rope cabling, paper rolls in the papermaking industry
    • Loading and unloading of goods inside containers

    Advantages

    • Strict Quality Inspection:
      Each product undergoes stringent quality checks before leaving the factory to ensure that all are of acceptable quality.
    • Comprehensive Specifications:
      A complete range of models is available, with multiple widths compatible for flexible combinations based on actual use.
    • Rational Design:
      The unique structural design considers the user’s needs for stable lifting, ease of operation, and maintenance. It allows for simple handling by a single person and enhances efficiency.

    Daily Maintenance

    • Used C-hooks must be placed on specialized racks and stored in a ventilated, dry, and clean workshop, with a designated person responsible for their upkeep.
    • The surface of C-hooks should be regularly protected against rust and should not be stored in environments with acid, alkali, salt, chemical gases, or humidity.
    • C-hooks must not be stored in high-temperature areas.
    • Regularly clean and lubricate moving parts to prevent dry friction and jamming.

    About Us

    Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.

    Henan Huasui Heavy Industry Machinery Equipment Co., Ltd.

    Certifications & Honors

    Henan Huasui Heavy Industry Machinery Equipment Co., Ltd.

    Packing & Shipping
