Electric Hoist

Short Description:

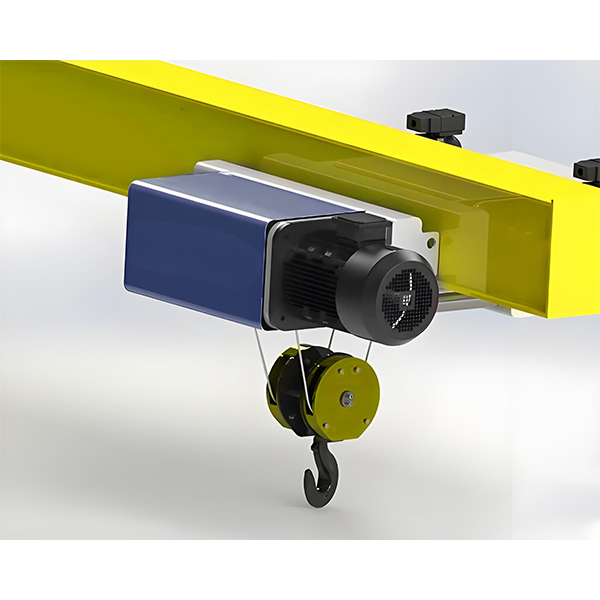

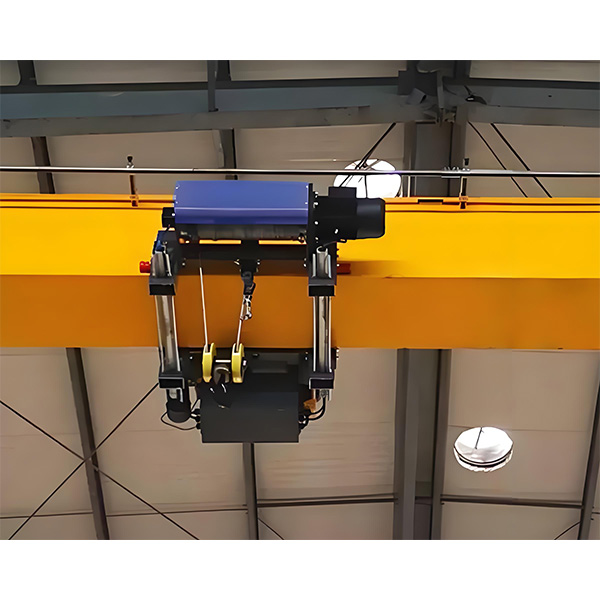

European Type 5 tons eot wire rope electric hoist. This is European type with compact design. It can improve the lifting height at Low room space. It was widely used on overhead crane, gantry crane and other equipment according to client request.

Lifting Height: 6m/9m/12m/15m/18m

Lifting Speed: 0.8/5 m/min

Traveling Speed: 2-20 m/min

Leave Message Download as PDF

Product Detail

Product Tags

Product Application

As the most widely used lifting device, wire rope electric hoist has always been the first choice for light and small lifting as the most commonly used equipment, then a suitable for various working conditions and environments, to meet the needs of various countries and regions of electric hoist, has become inevitable.

Features

Full variable frequency drive – energy saving;
Protection class IP54- long life;
Noise as low as 65 decibels – mute;
High level of work – high efficiency;

Technical Parameters

Rated Load Capacity t	Work duty FEM		Work Duty ISO	Lift Height m		Lift Speed M/min	Trolley speed M/min
3.2T	2m	M5		6/9/12/15/18	0-5.0		0-20
3.2T	2m	M5		6/9/12/15/18	0-8.0		0-20
5T	2m	M5		6/9/12/15/18	0-5.0		0-20
5T	2m	M5		6/9/12/15/18	0-8.0		0-20
8T	2m	M5		6/9/12/15/18	0-4.0		0-20
8T	2m	M5		6/9/12/15/18	0-4.5		0-20
10T	2m	M5		6/9/12/15/18	0-4.0		0-20
10T	2m	M5		6/9/12/15/18	0-5.0		0-20
12.5T	2m	M5		6/9/12/15/18	0-4.4		0-20
12.5T	2m	M5		6/9/12/15/18	0-5.0		0-20
16T	2m	M5		6/9/12/15/18	0-4.4		0-20
16T	2m	M5		6/9/12/15/18	0-5.0		0-20
20T	2m	M5		6/9/12/15/18	0-3.6		0-20
20T	2m	M5		6/9/12/15/18	0-5.0		0-20
