Description

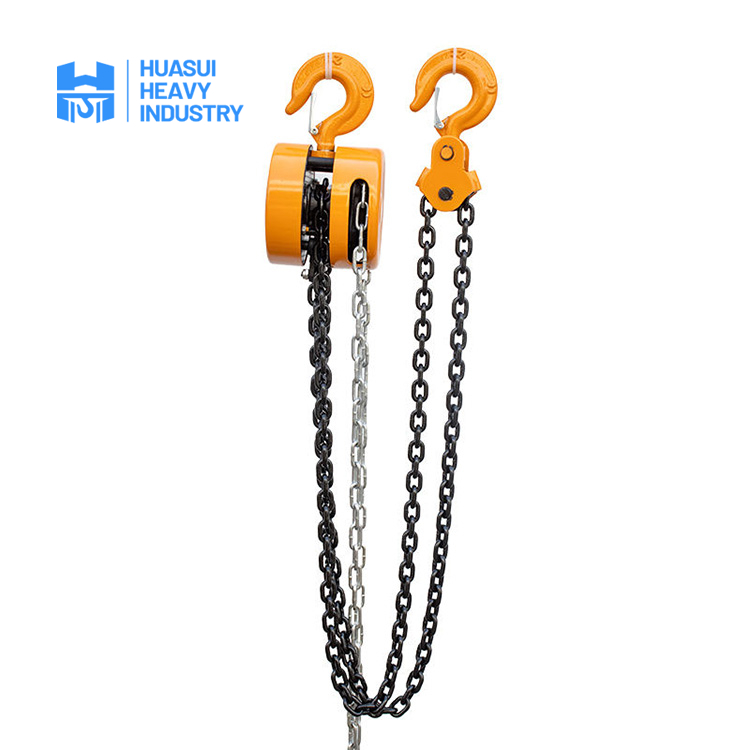

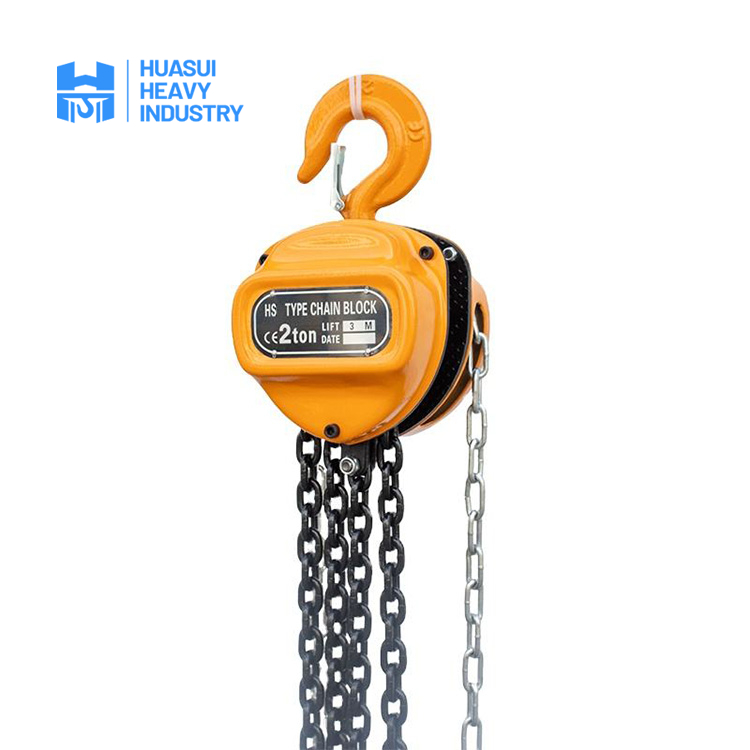

The Manual Chain Hoist is a compact, simple, and robust lifting device designed for reliable performance in light to medium-duty applications. With its straightforward operation and durable construction, this hoist is an essential tool for environments where electricity is unavailable or impractical. Its compact size and portability make it a versatile choice for various lifting tasks in both industrial and outdoor settings.
Features
Compact and Lightweight: Small footprint and portable design for easy handling and installation.
Simple Structure: Easy to use and maintain with minimal training required.
Durable Construction: Built with high-quality materials to ensure long-lasting performance, even in tough environments.
Safe and Reliable: Equipped with advanced load brakes and safety mechanisms for secure operations.
Cost-Effective: Offers a budget-friendly solution for lifting tasks without sacrificing performance.
Technical Parameter
|
Model (Cap.) |
0.25T | 0.5T | 1T | 1.5T | 2T | 3T | 5T | 10T | 20T | |
| Lifting Height (m) | 3, 4.5, 6, 9, 12 | |||||||||
| No. of Falls | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Load Chain Size (mm) | 4*12 | 5*15 | 6*18 | 7*21 | 6*18 | 7*21 | 10*30 | 10*30 | 10*30 | |
| Hand Chain Size (mm) | 3*15 | 5*24 | 5*24 | 5*24 | 5*24 | 5*24 | 5*24 | 5*24 | 5*24 | |
| Dime. (mm) | A | 100 | 132 | 156 | 178 | 156 | 178 | 229 | 396 | 642 |
| B | 110 | 126 | 146 | 159 | 146 | 159 | 188 | 188 | 214 | |
| C | 15 | 22 | 25 | 29 | 33 | 36 | 42 | 56 | 75 | |
| H | 220 | 330 | 380 | 450 | 530 | 600 | 700 | 920 | 1050 | |
| Weight of 3m Type (kg) | 3.2 | 8.5 | 11 | 17.5 | 18 | 25 | 44 | 79 | 178 | |
| Weight add. 1m each (kg) | 0.5 | 1.5 | 1.7 | 2.1 | 2.5 | 3.1 | 5.3 | 9.7 | 19.4 | |
Application
Workshops and Factories: Ideal for lifting and positioning small to medium loads during assembly or repair.
Construction Sites: Reliable for lifting tools, materials, and equipment in areas without power supply.
Warehouses: Efficient for stacking and moving goods in tight spaces.
Outdoor Applications: Perfect for lifting in remote locations, such as forestry and field operations.
Maintenance Tasks: Portable solution for lifting during machinery installation and servicing.
Details

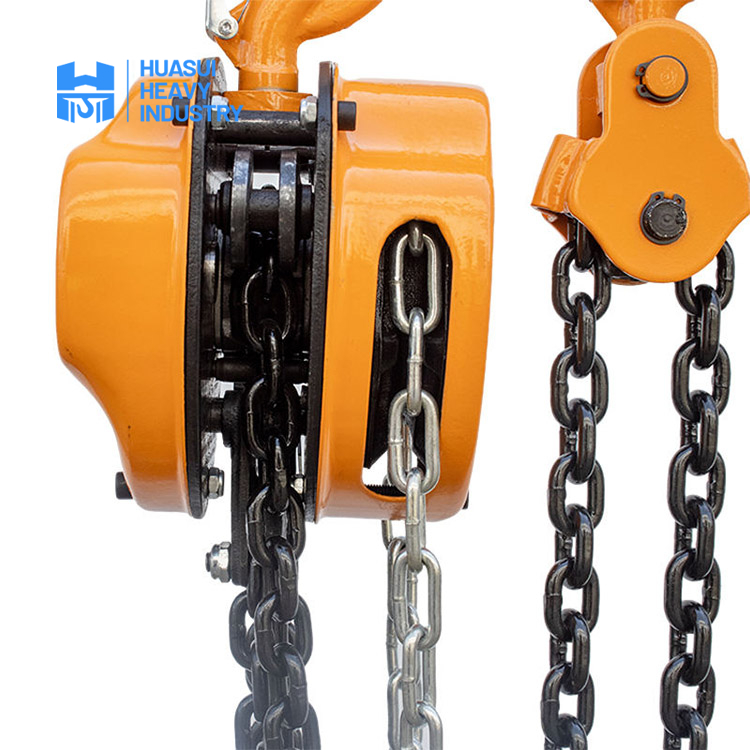

Load Chain
Made of hardened alloy steel with excellent tensile strength and corrosion resistance. Ensures smooth operation and a long service life under heavy loads.
Load Hook
Forged steel hook with a safety latch for secure load attachment. Ensures stable lifting and reduces the risk of load slippage.

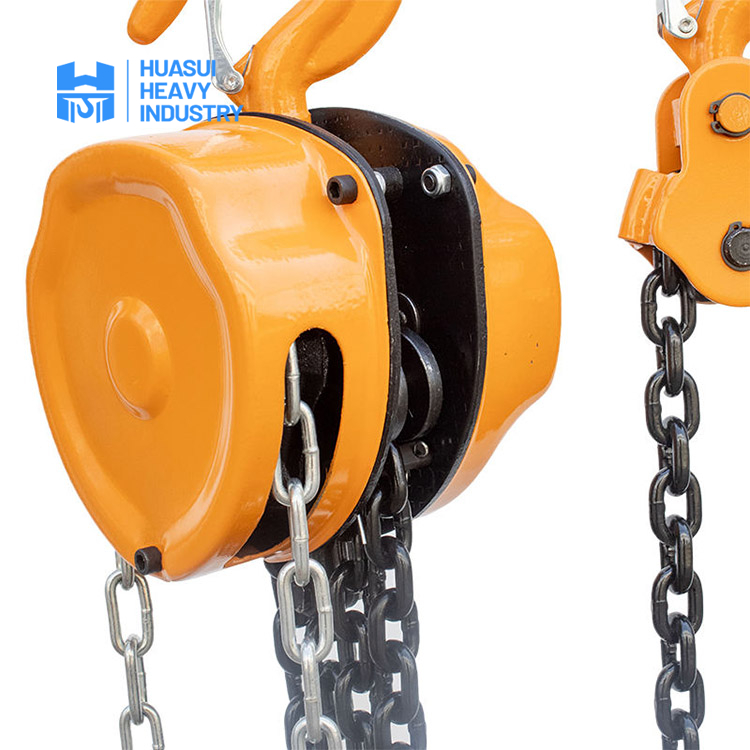

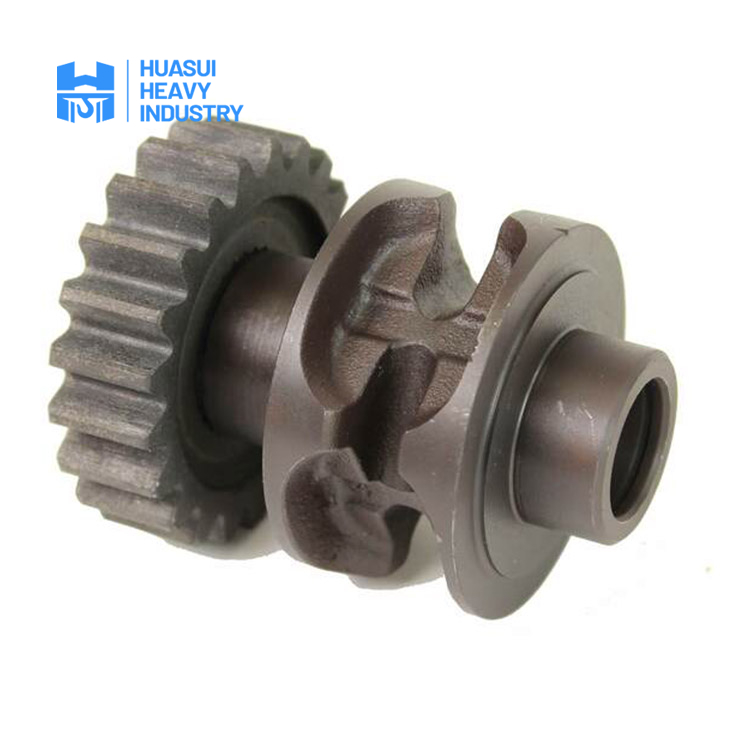

Frame and Gears
Robust steel frame and precision-engineered gears for optimal power transmission.
Enhances the hoist’s strength and durability while maintaining smooth operation.
